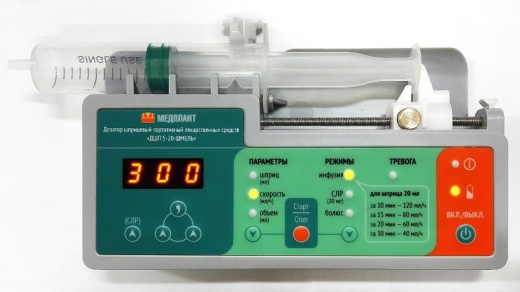

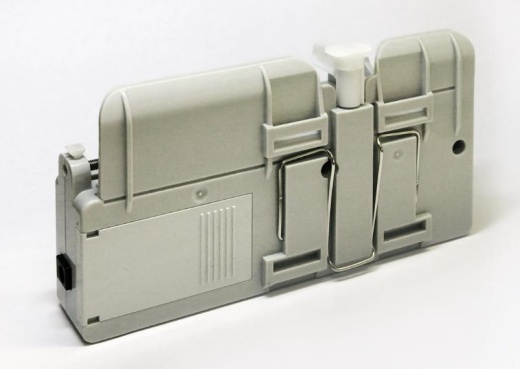

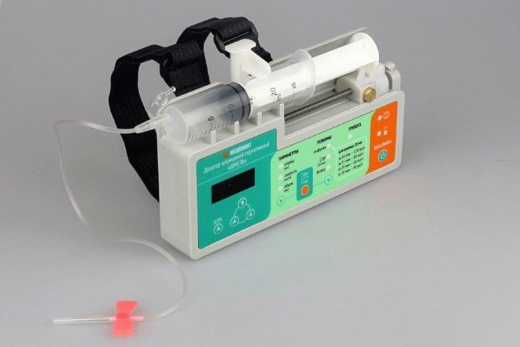

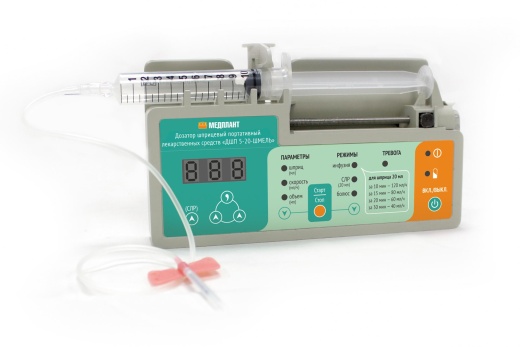

PORTABLE SYRINGE DRIVER
Characteristics
“CPR” mode only for the syringe with the rated capacity (volume) of 20 ml, single-drug injection (infusion) volume 5 ml
—
infusion of 5 ml of the drug within not more than 16 sec every 4 min 5 sec ± 5 sec
“CPR” mode only for the syringe with the rated capacity (volume) of 20 ml, single-drug injection volume 3 ml
—
infusion of 3 ml of the drug within not more than 8 sec every 4 min 5 sec ± 5 sec
Battery life from accumulator, hour
—
10 (at least 10 h at the infusion rate of 600 ml/h using the syringe with the rated capacity (volume) of 20 ml)
The price is valid only for the online store and may differ from the prices in retail stores
PORTABLE SYRINGE DRIVER
#PROP_TITLE#
—
#PROP_VALUE#
INTENDED PURPOSE: The driver is intended for longtime and precise dosing of medicine.
SCOPE OF USE: Pre-Hospital Emergency Medicine, Disaster Medicine, Military and Extreme Medicine, Medical Evacuation.
ADVANTAGES:
- Supercompact, lightweight and cost-effective;
- Easy to operate, simple control interface;
- Autodetection of fill volume of syringe;
- Accepts a wide range of syringe sizes: 2 – 20 mls;
- Infusion mode during CPR.
SCOPE OF USE: Pre-Hospital Emergency Medicine, Disaster Medicine, Military and Extreme Medicine, Medical Evacuation.
ADVANTAGES:
- Supercompact, lightweight and cost-effective;
- Easy to operate, simple control interface;
- Autodetection of fill volume of syringe;
- Accepts a wide range of syringe sizes: 2 – 20 mls;
- Infusion mode during CPR.
“CPR” mode only for the syringe with the rated capacity (volume) of 20 ml, single-drug injection (infusion) volume 5 ml
infusion of 5 ml of the drug within not more than 16 sec every 4 min 5 sec ± 5 sec
“CPR” mode only for the syringe with the rated capacity (volume) of 20 ml, single-drug injection volume 3 ml
infusion of 3 ml of the drug within not more than 8 sec every 4 min 5 sec ± 5 sec
Battery life from accumulator, hour
10 (at least 10 h at the infusion rate of 600 ml/h using the syringe with the rated capacity (volume) of 20 ml)
Inadvertent bolus protection function (“Anti-bolus”)
yes
Infusion rate in the “Bolus” mode for the syringe with the rated capacity (volume) of 10 ml, ml/h; not adjusted
650-950
Infusion rate in the “Bolus” mode for the syringe with the rated capacity (volume) of 20 ml, ml/h; not adjusted
1000-1500
Infusion rate in the “Bolus” mode for the syringe with the rated capacity (volume) of 5 ml, ml/h; not adjusted
480-620
Occlusion pressure, kp/cm2
0,25 – 0,65
Overall dimensions, mm
(167±5)х(92±5)х(32±5) (without adapter)
Power supply / accumulator
yes
Power supply / car lighter socket
yes
Power supply / main supply
yes
Rated capacity (volume) of syringes used, ml
Automatic detection of the syringe rated capacity (volume): 5, 10, 20
Weight, kg
not more than 0,3
