Automatic compression machine for cardiopulmonary resuscitation “ARKA”
Characteristics
Patient's chest height (range for the height of the initial position for the suction cup plunger), mm
—
170-305
Patient's chest width, mm
—
Maximum 450
Operating mode setup time, s
—
Maximum 5
The price is valid only for the online store and may differ from the prices in retail stores
Automatic compression machine for cardiopulmonary resuscitation “ARKA”
#PROP_TITLE#
—
#PROP_VALUE#
Scope: ambulance, anesthesiology and resuscitation, cardiovascular surgery, emergency medical services.
Purpose: closed-chest cardiac massage as part of cardiopulmonary resuscitation activities.
Intended user: healthcare personnel trained to perform cardiopulmonary resuscitation.
Conditions of use: providing medical aid at the incident scene, during medical evacuation, in healthcare institutions.
Indications: a state of clinical death and/or circulatory arrest determined by a healthcare professional, when closed-chest cardiac massage may be used as part of resuscitation activities.
Contraindications: inability to position the machine on the patient's chest properly; too small (chest height less than 170 mm) or too big patient (chest height over 305 mm, chest width over 450 mm).
Patients: the machine is intended for adults and children with the following chest dimensions in recumbent position:
- chest height – 170 mm to 305 mm;
- chest width – not more than 450 mm.

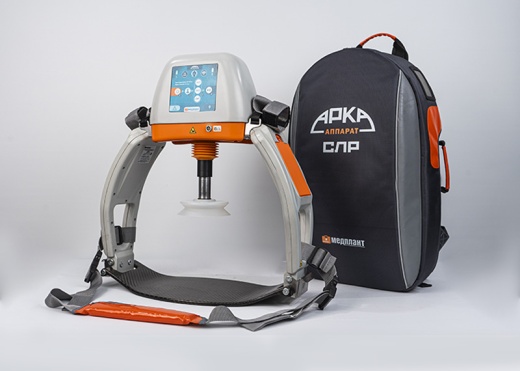

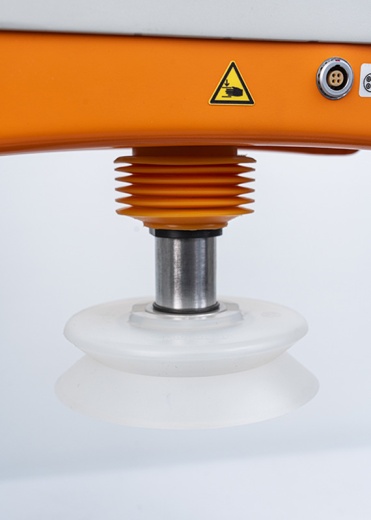

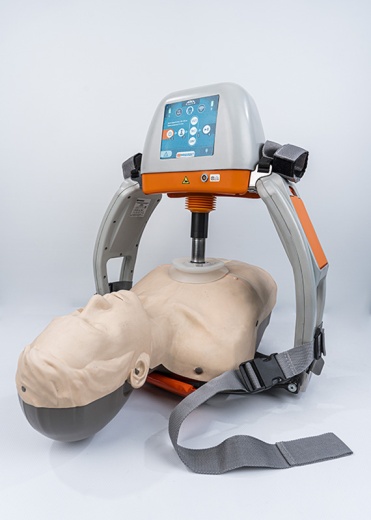

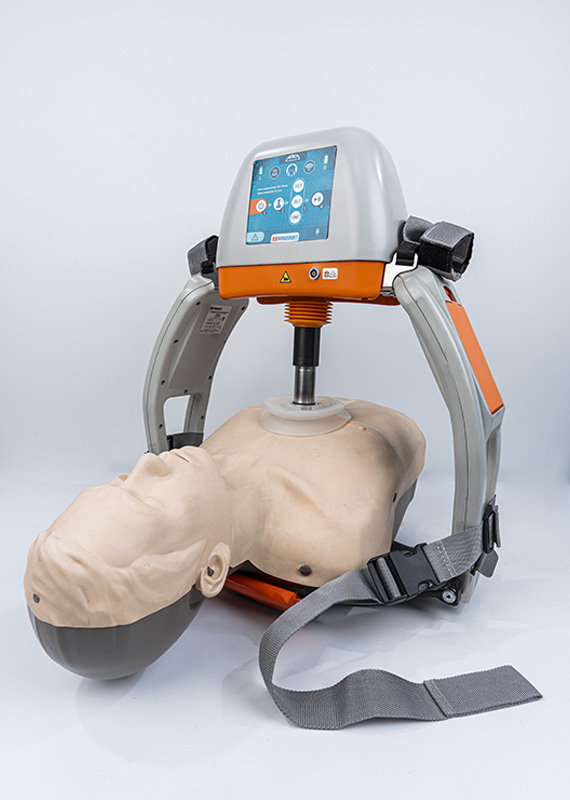

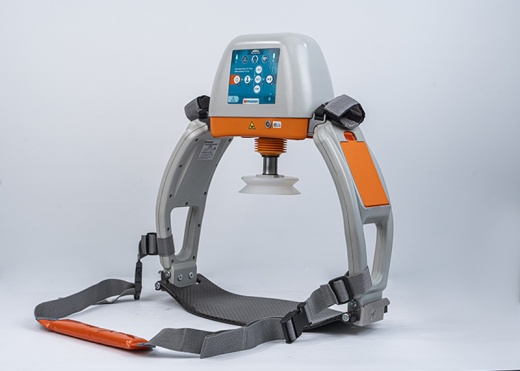

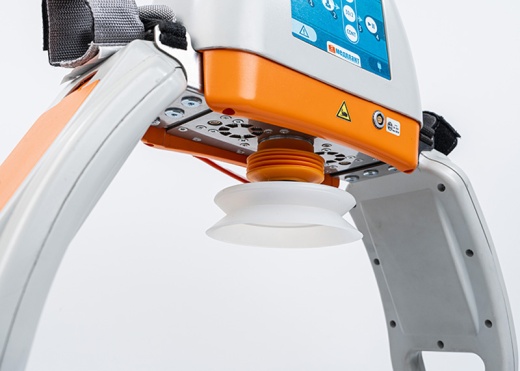

Design description: the machine consists of an functional unit equipped with a piston with a disposable vacuum cup, and a support plate.

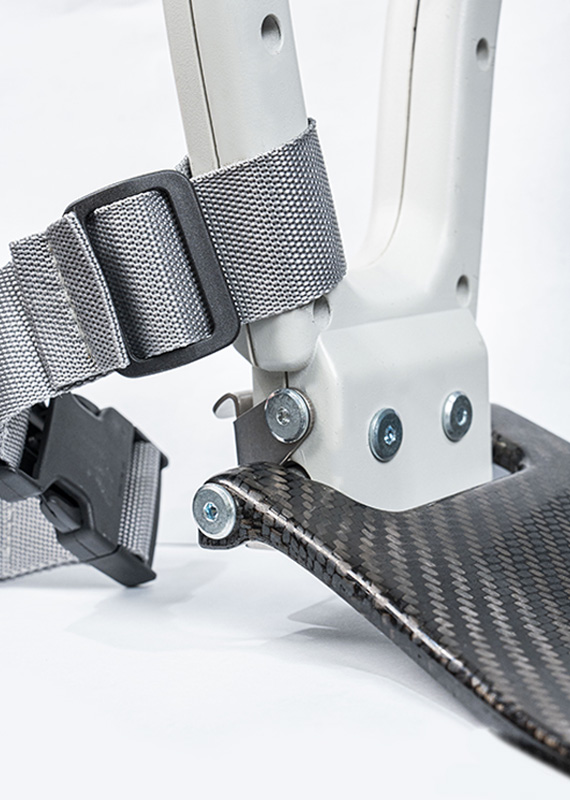

A control and indication panel is located on the front of the functional block. The functional unit side posts are fixed to the support plate placed under the patient’s chest forming a rigid closed structure.
The functional unit is equipped with a backlight in the form of a positioning line for the machine quick position on the patient’s chest and control its proper position during CPR.

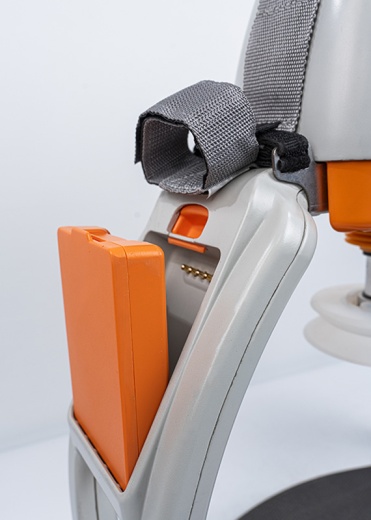

The machine can operate autonomously from a set of two rechargeable batteries or one battery installed in the side posts, with the provision of hot swapping one of them, as well as from an external AC network via a power adapter.
In order to ensure convenience when transporting a patient, the machine (if required) can be equipped with hand fixing straps on the side post outer surfaces and a stabilizing strap.

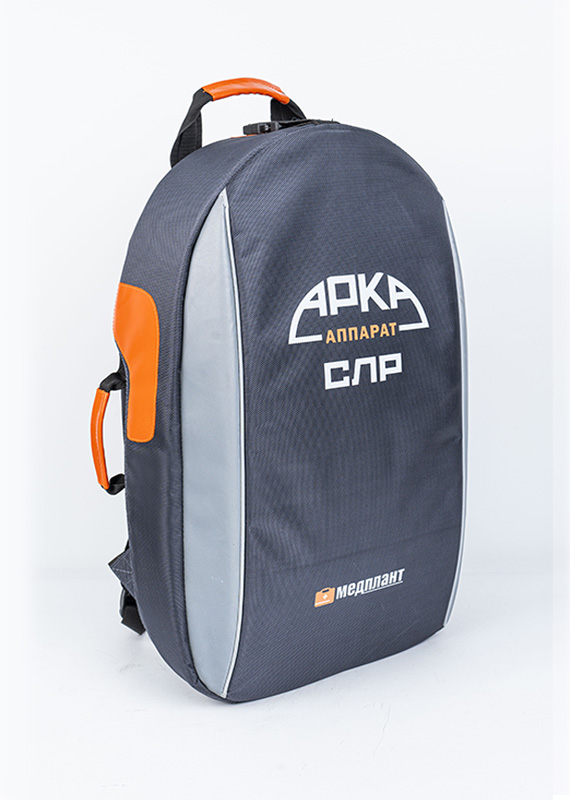

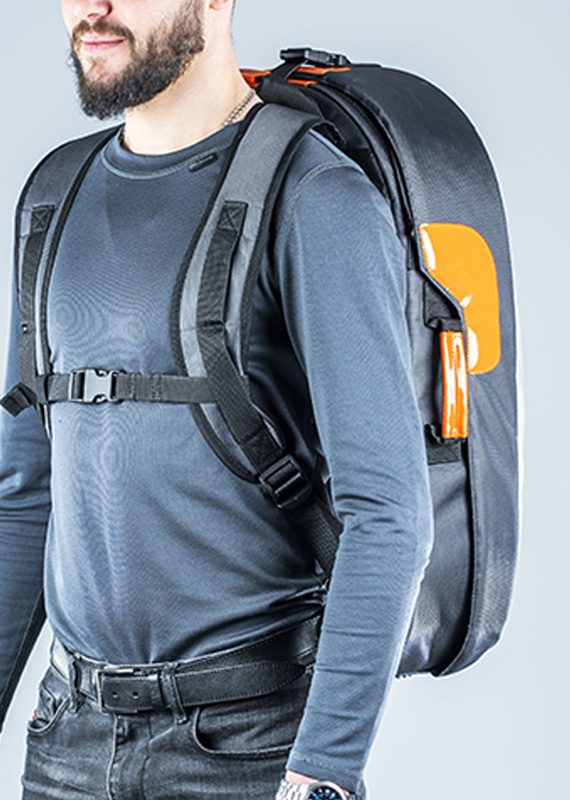

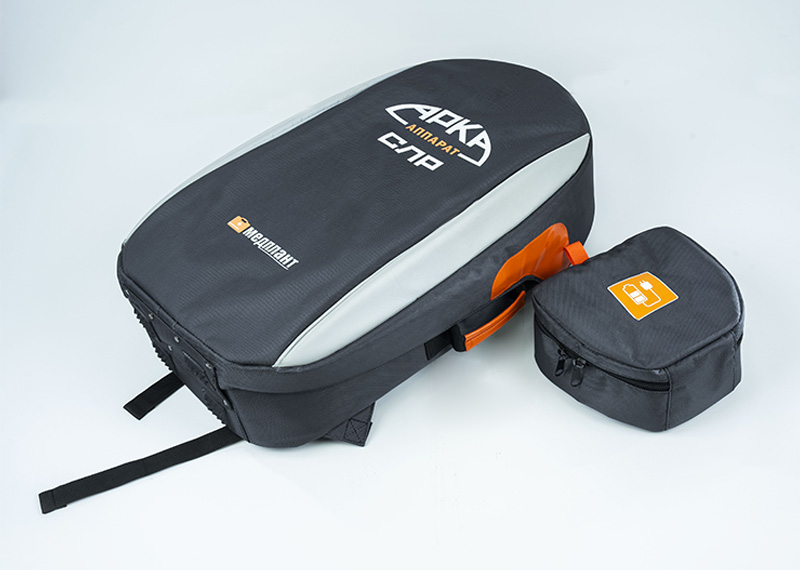

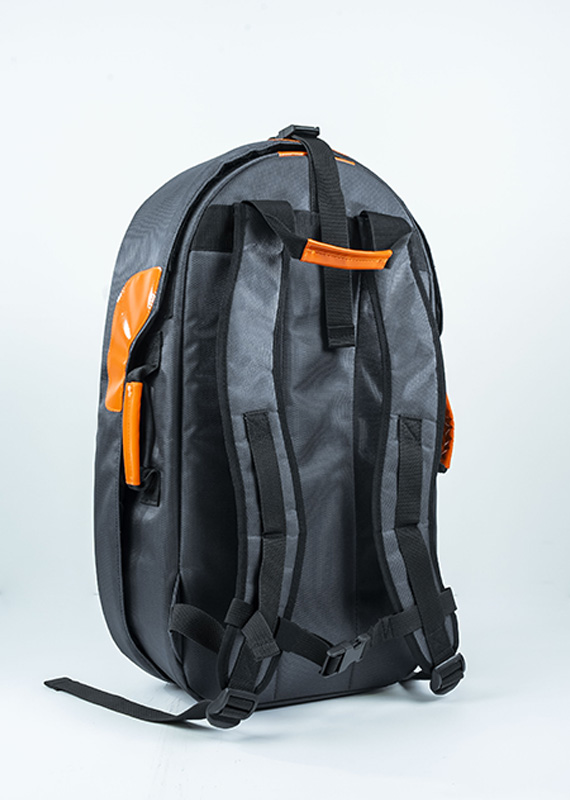

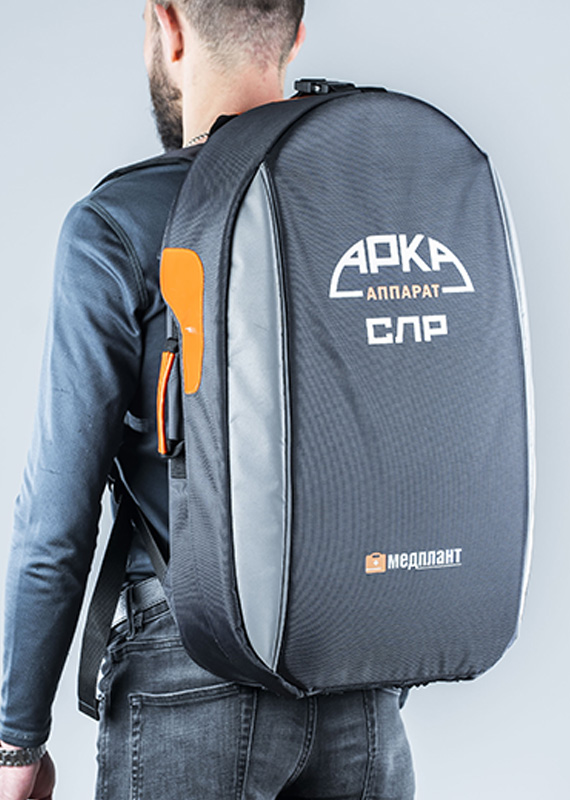

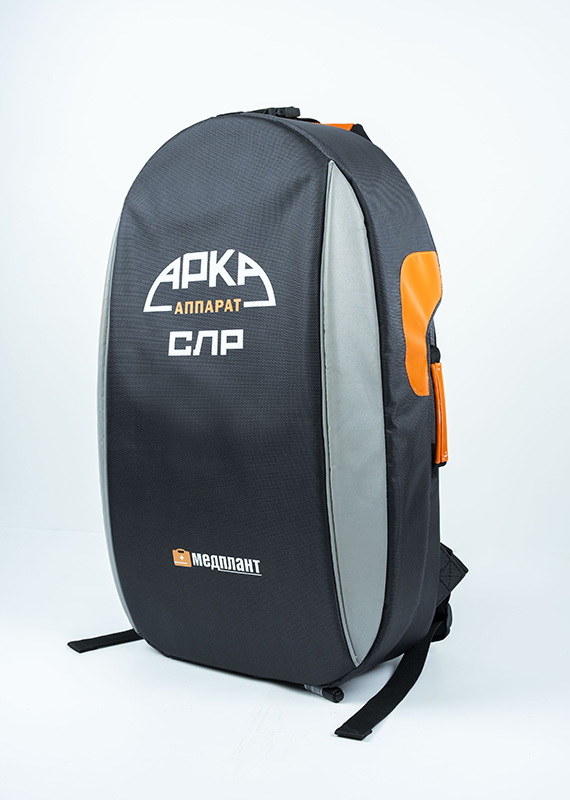

During operational transportation, the machine can be placed in a backpack with a detachable compartment for storing electrical components, or carried using a carrying strap (supplied upon request).
Registration certificate No. RZN 2024/24065 dated 27.01.2025.
“Automatic compression machine for cardiopulmonary resuscitation “ARKA” with accessories due to technical specifications 32.50.50-080-52777873-2024"
Purpose: closed-chest cardiac massage as part of cardiopulmonary resuscitation activities.
Intended user: healthcare personnel trained to perform cardiopulmonary resuscitation.
Conditions of use: providing medical aid at the incident scene, during medical evacuation, in healthcare institutions.
Indications: a state of clinical death and/or circulatory arrest determined by a healthcare professional, when closed-chest cardiac massage may be used as part of resuscitation activities.
Contraindications: inability to position the machine on the patient's chest properly; too small (chest height less than 170 mm) or too big patient (chest height over 305 mm, chest width over 450 mm).
Patients: the machine is intended for adults and children with the following chest dimensions in recumbent position:
- chest height – 170 mm to 305 mm;
- chest width – not more than 450 mm.
Design description: the machine consists of an functional unit equipped with a piston with a disposable vacuum cup, and a support plate.
A control and indication panel is located on the front of the functional block. The functional unit side posts are fixed to the support plate placed under the patient’s chest forming a rigid closed structure.
The functional unit is equipped with a backlight in the form of a positioning line for the machine quick position on the patient’s chest and control its proper position during CPR.
The machine can operate autonomously from a set of two rechargeable batteries or one battery installed in the side posts, with the provision of hot swapping one of them, as well as from an external AC network via a power adapter.
In order to ensure convenience when transporting a patient, the machine (if required) can be equipped with hand fixing straps on the side post outer surfaces and a stabilizing strap.
During operational transportation, the machine can be placed in a backpack with a detachable compartment for storing electrical components, or carried using a carrying strap (supplied upon request).
Registration certificate No. RZN 2024/24065 dated 27.01.2025.
“Automatic compression machine for cardiopulmonary resuscitation “ARKA” with accessories due to technical specifications 32.50.50-080-52777873-2024"
Patient's chest height (range for the height of the initial position for the suction cup plunger), mm
170-305
Patient's chest width, mm
Maximum 450
Operating mode setup time, s
Maximum 5
Compression rate, 1/min
105±5
Compression depth (working amplitude of the patient's chest compressions), mm
53±3
Chest compression enhancement
Automatic
Mode: 30 patient's chest compressions with the rate of (105±5) min-1, followed by a 3-second pause
30:2
Mode: 15 patient's chest compressions with the rate of (105±5) min-1, followed by a 3-second pause
15:2
Mode: continuous patient's chest compressions with the rate of (105±5) min-1
Continuous (CONT)
Sound alarms
Present
Visual indication and alarms
Present
Temporary disabling of sound alarms, min
5±0.1
Assembled device weight, kg
7.9±20 %
ARKA rucksack bag, mm
620×350×230
Assembled device dimensions, mm
573×552×240
Deviation of the positioning lighting line from the support plate symmetry axis along its whole width, mm
Maximum 20
Autonomous device operating time with two completely charged batteries (at the ambient temperature of (25 ± 5) °C), min
Minimum 92
Operating temperatures
-5 °C to +41 °C
Operation after operating storage and transportation at (20±4) °C beyond normal operating conditions at low temperatures
–20 °C to –5 °C within minimum 1 hour
Operation after operating storage and transportation at (20±4) °C beyond normal operating conditions at high temperatures
+41 °C to +50 °C within minimum 20 minutes
Storage temperature
-20 °C to +60 °C
Transportation temperatures
-20 °C to +60 °C
Relative humidity during operation, storage, and transportation
5-98 % (non-condensing)
Atmospheric pressure
62-107 kPa
Protection degree of the ARKA functional unit
IP43
Protection degree of the rechargeable battery
IP44
Protection degree of the charging device
IP40
Resistance to mechanical impacts during operation
Portable device (GOST R IEC 60601-1); Group 5 (GOST R 50444)
Resistance to mechanical impacts during transportation
In the transport packaging. Group 5 (GOST R 50444)
Average device service life (including storage, not accounting for the rechargeable battery service life) with the average operating intensity of 90 minutes per week, years
Minimum 5
Expected service life (including shelf-life, if not stated otherwise) of the device according to GOST R IEC 60601-1
8 years
Recommended period for rechargeable battery replacement
3 years or 200 uses (over 10 minutes long each)
